Continuous PU Sandwich Panel Line

Reliable Sandwich Panel Production Lines Manufacturer from China

Specialized in continuous sandwich panel manufacturing lines, Sinowa delivers durable industrial machinery for PU, PIR, PF, rockwool, mineral wool and glass wool foam panels. Trusted manufacturing solutions for worldwide industrial clients.
High-quality & Easy-to-operate

Continuous Sandwich Panel Production Line

As a professional and reliable supplier of continuous sandwich panel manufacturing lines, we focus on independent R&D and optimized equipment manufacturing to deliver high-stability automated production solutions.

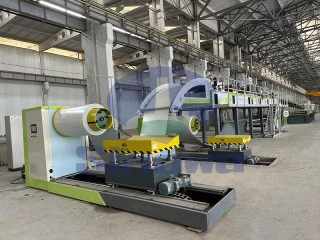

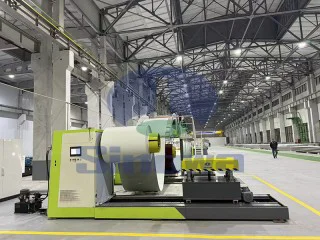

Continuous PU/PIR Sandwich Panel Production Line

Continuous PU/PIR Sandwich Panel Production Line

Continuous PU/PIR sandwich panel production line is one of the most important representative products of Sinowa. We mainly provide various leading highly integrated and automatic Continuous PU sandwich panel production line and our customers come from each corner all over the world. With rich production experience and technical concept of continuous innovation and improvement, we have various comprehensive indexes of our production lines at the highest level in the field.

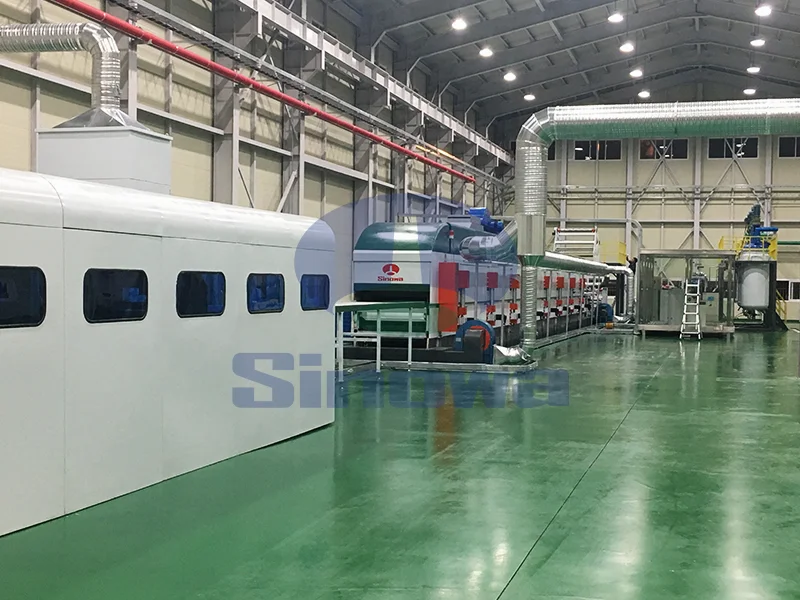

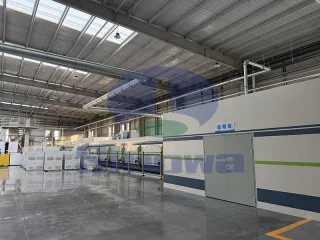

Continuous PU/Phenolic Insulation Board Production Line

Continuous PU/Phenolic Insulation Board Production Line

Continuous Insulation Panel Production Line of the PU and phenolic aldehyde surface has diversified and multifunctional production characteristics, which may produce products with different specifications such as PU, PF, PIR, etc. The surface material may be aluminum foil, colored steel, cement base cloth, kraft paper, non-woven fabrics, etc. The products are widely applied to such occasions as construction, decoration, pipeline ventilation, subway construction, etc.
Rockwool/Mineral Wool Sandwich Panel Production Line

Rockwool/Mineral Wool Sandwich Panel Production Line

Rockwool and mineral wool sandwich panel production lines are integrated automated manufacturing systems for producing high-performance composite building panels. The lines feature streamlined workflows covering surface plate forming, core material cutting, precise laying, composite pressing and thermal curing. With stable mechanical operation and intelligent control modules, they deliver consistent panel structure, excellent thermal insulation and sound absorption. These efficient production setups support continuous mass manufacturing, yielding durable panels ideal for diverse architectural and industrial insulation applications.
Why Choose Sinowa Sandwich Panel Machinery

Overall Competitive Advantages

Sinowa production lines are developed according to modern industrial equipment design principles, integrating precision manufacturing, modular engineering, automated control and energy-saving technologies. Particular emphasis is placed on simple and highly automated operation, thereby reducing dependence on operator experience and skill.

Continuous PU Sandwich Panel Line Manufacturer In China,Sinowa
Reliable Manufacturer of Sandwich Panel Lines

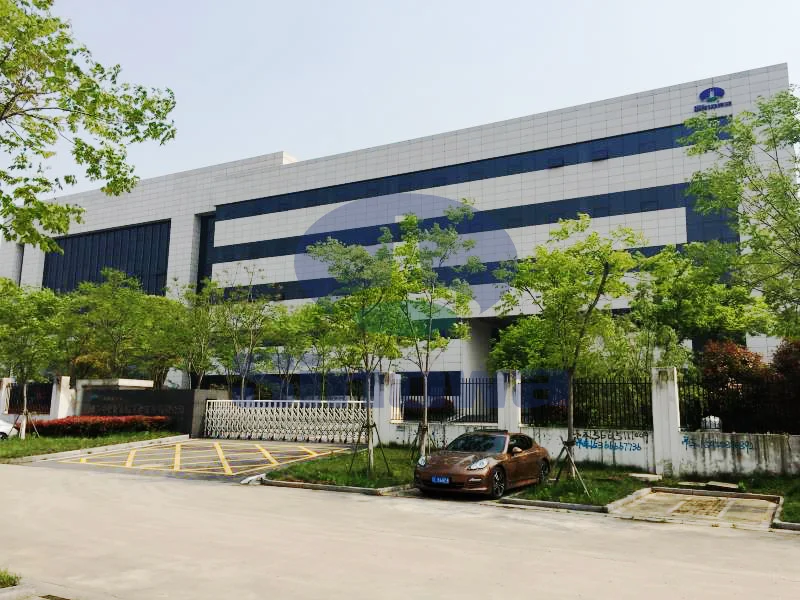

Company Introduction

Sinowa is a well-known manufacturer and technical service provider of high-end polyurethane sandwich panel production lines and various high-performance cold roll forming machine in China. Our main products include polyurethane double-sided color steel sandwich panel production line, polyurethane and phenolic soft facing insulation panel production line and high-efficiency roll forming lines.

For more than ten years, relying on our innovative manufacturing concept and excellence in quality, reliable and trustworthy service to customers, we cooperate with customers all over the world, exported products to Canada, South Korea, Israel, Australia, the Middle East and other more than 20 countries and regions. contributed to building energy conservation and low-carbon production and have won widespread praise.

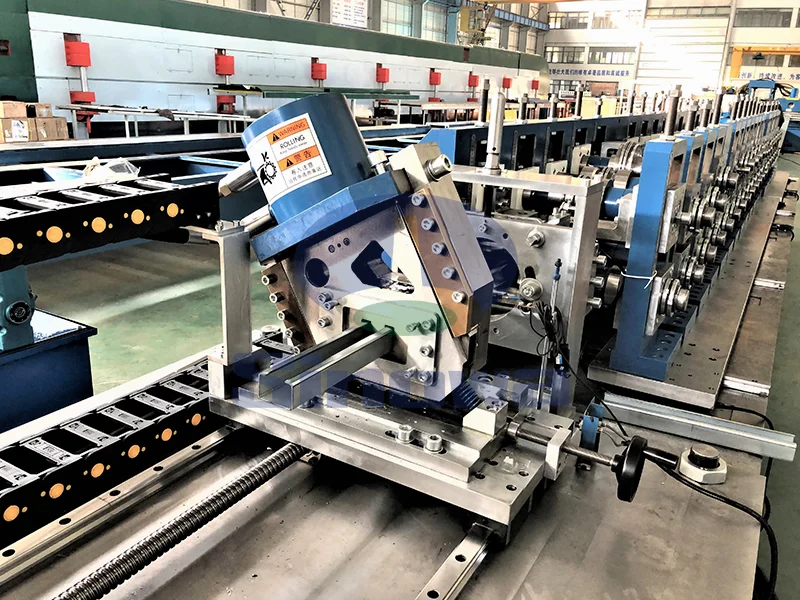

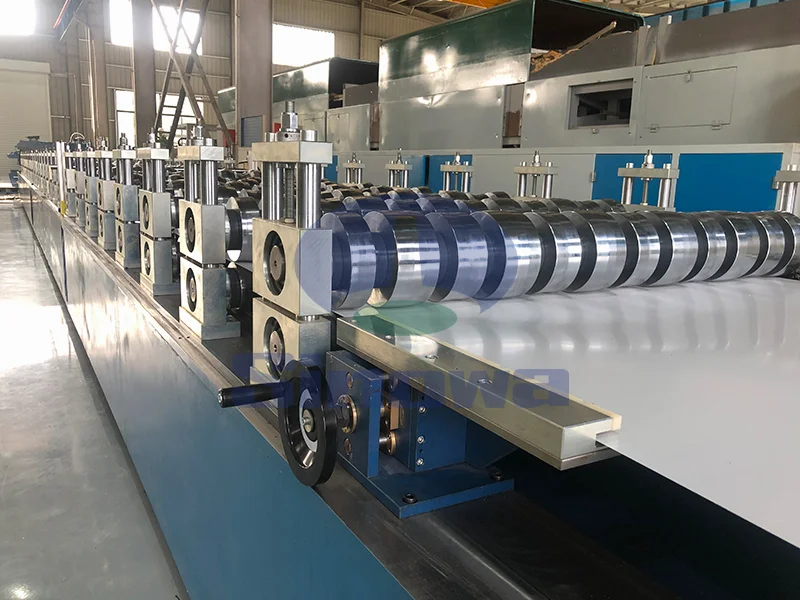

Roll Forming Machines and

Other Service Items

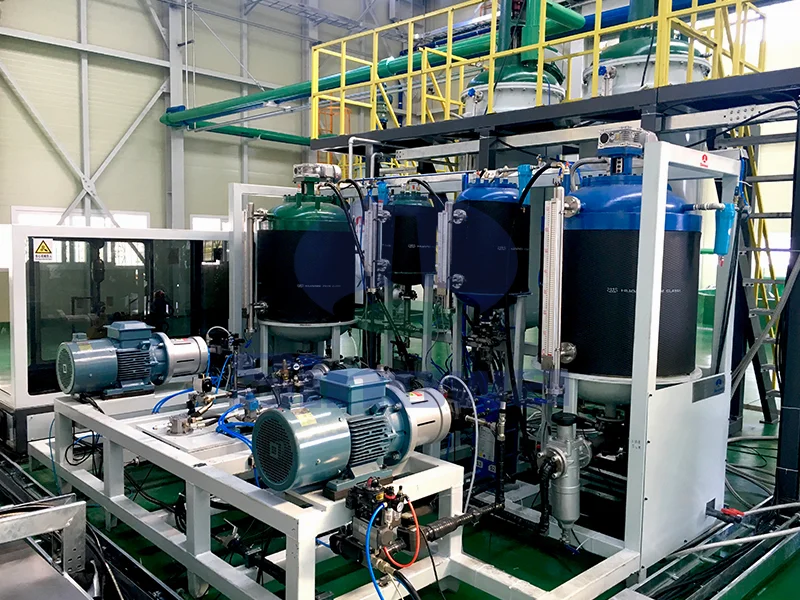

Sinowa not only custom-manufactures cold roll forming production lines and multi-component pentane foaming machines, but also engages in the trading of insulation panels, steel materials and profiles.

Win-win Cooperation

Our Customers

Sinowa combines advanced engineering concepts with efficient manufacturing capabilities to deliver highly competitive and cost-effective complete production solutions to customers worldwide.

Latest Release

What's News

FAQs

Here are answers to some frequently asked questions. Should you have any other inquiries, please contact Sinowa Technical Support via E-mail or WhatsApp.

Board Specifications & Product Range
  • Panel Type: wall, roof, cold storage sandwich panel
  • MIN-MAX length of the panel: 2000mm - 18000mm
  • Width range of the panel: 600mm - 1200mm
  • Thickness range of the panel: 30mm - 250 mm
  • Surface material type: color-coated steel plate, galvanized steel plate, aluminum plate, stainless steel plate, soft surface material (aluminum foil, non-woven fabric, kraft paper)
  • Thickness range of the surface material: 0.3-0.8mm
  • Foam Core Material Type: PU/PIR/Rock wool/EPS/Mineral wool
  • The density range of the core materials: PU 35-45 kg/m³, PIR 40-55 kg/m³, rock wool 100-150kg/m³
  • The density of the special PU PIR grade A flame-retardant board can reach 180kg/m³
Capacity & Speed
  • The production line speed (typical: 3-10 m/min, high-speed lines can reach 12-16 m/min)
  • The capacity (3,000-12,000 square meters) for a single shift of 8 hours or 24 hours based on the panel thickness
  • Effective length of double belt laminator system (typical: 12- 48m) - The length directly determines the curing time and the upper limit of production capacity
Core Equipment Configuration

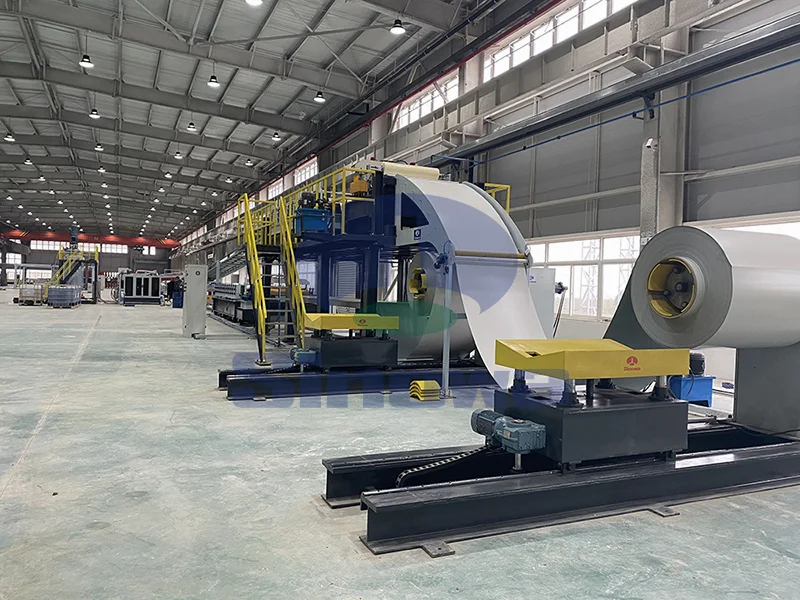

  • Number and form of uncoiler (whether it supports changing the coil without stopping the machine) : 2 or 4 units, changing the coil without stopping the machine
  • The roll forming machine supports rapid type change (profile type change time) : The precision lead screw mechanism and the servo mechanism work together to successfully switch within 2 to 5 minutes
  • Heating system: Electric heating, gas, fuel oil, adjustable and controllable temperature
Utilities & Plant Conditions
  • Total installed power: (Typical 220-450 kW) is related to the actual configuration, Transformer 250KVA,380-415V,50-60Hz
  • What are the requirements for compressed air?
    typical air pressure 6-7 Bar, gas consumption
  • Heating methods: Steam/fuel oil/electric heating 120-180kw
  • What are the minimum size requirements for the factory building (length × width × height)?
    Continuous lines usually require 80-150 meters × 15-30 meters × 6-7 meters
  • For transformers, the requirements for gas and water are:
    Transformers 250KVA,380-415V,50-60Hz. Gas: compressed air: 7-8 kg/cm2 Volume: 10 m3 / min; Water: None
  • Are there any special requirements for the equipment foundation (ground load-bearing capacity, embedded parts)?
    No requirements at all. Flat ground is fine
  • Are the power supply voltage and frequency of the factory compatible with the equipment?
    According to the industrial voltage requirements of each country
Quality & Certifications
  • Does the equipment have CE certification?
    Yes, CE certification can be provided
  • Whether to assist the product in passing the EN 14509 (EU sandwich panel standard) certification, and whether to provide equipment that meets the EU standard has been certified
  • Is the Factory Acceptance Test (FAT) provided?
    Can be provided
Delivery, Installation & Services
  • Delivery period: From deposit to shipment, it usually takes 3 to 6 months
  • Does the quotation include: domestic transportation/international sea freight/on-site installation/commissioning/operation training?
    For specific details, please refer to the quotation sheet
  • Installation and commissioning period and the number of personnel dispatched by the supplier?
    Four to five people, taking turns to go
  • Warranty period: Usually 12 to 24 months
  • Whether remote technical support and on-site emergency response are provided: Guarantee a 1-hour response and on-site service within 48 hours
  • Can visits to existing clients' sites or reference projects (especially cases within the target market) be arranged?
    Yes, visits and investigations can be arranged for all foreign clients

Precision Engineering · Intelligent Manufacturing · Optimized Investment
