Автоматическая линия по производству прецизионных сэндвич-панелей с изоляцией из полиуретана/минеральной ваты

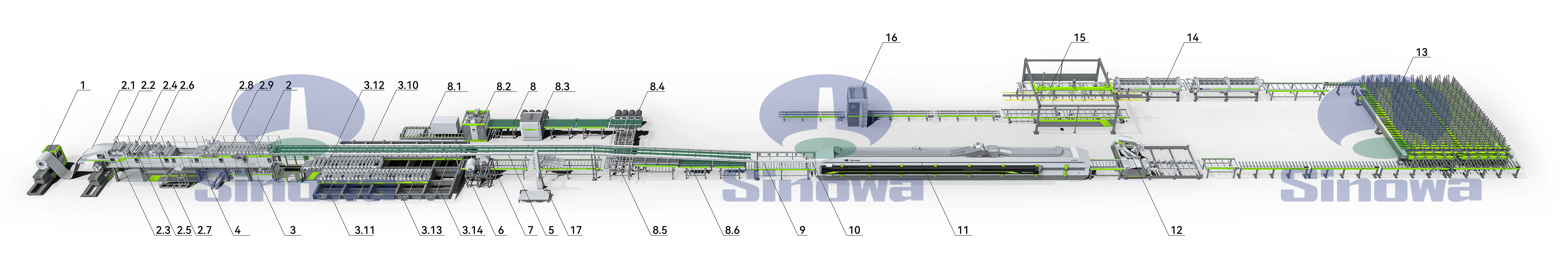

- 1Uncoiler System
- 2Upper roll forming machine system
- 2.1Guiding Device
- 2.2Pinch Roll Unit
- 2.3Film Device
- 2.4SS roughening roller Device
- 2.5Corona mechanism
- 2.6Crop Shear with Scrap Switch
- 2.7Automatic Sheet Joint System
- 2.8Ribbing rollers Device
- 2.9Upper Sheet Forming System
- 3lower roll forming machine system
- 3.1Lower Strip Roller Conveyor
- 3.2Guiding Device
- 3.3Pinch Roll Unit
- 3.4SS roughening roller Device
- 3.5Corona mechanism
- 3.6Pinch Roll Unit
- 3.7Crop Shear with Scrap Switch
- 3.8Automatic Sheet Joint System
- 3.9Ribbing Rollers Device
- 3.10Roof Roll Forming Profling
- 3.11Wall Forming Profling
- 3.12Cold Storage Roll Forming Profling
- 3.13Roll Forming Profling automatic Switching systems
- 3.14BoxModularized Roll Foming Machine base
- 4Standard Foundation-plate for The Whole Line
- 5TheSuspended cpnveyor of Upper Steel Sheet
- 6glue spinning system
- 7Themetering station for fying glue system
- 8Automatic Rockwool System
- 8.1Rockwool Loading Frame
- 8.2Rockwool Lifting
- 8.3Rockwool Slitting System
- 8.4Rockwool 90° Turning
- 8.5Rockwool Counting System
- 8.6Glue spray System
- 8.7Low pressure foaming machine for bilatera PU
- 9Pre-heating System
- 10High Rigidity Suspension System for the entrance of double belt laiminator
- 11The Double Belt Laiminator System
- 12Sero Belted 60° torsion Cutting System
- 13Cooling System
- 14Roof Sandwich Panel Over-turn System
- 15Sandwich Panel Stacker System
- 16Automatic Packaging System
- 17Electrical control system
